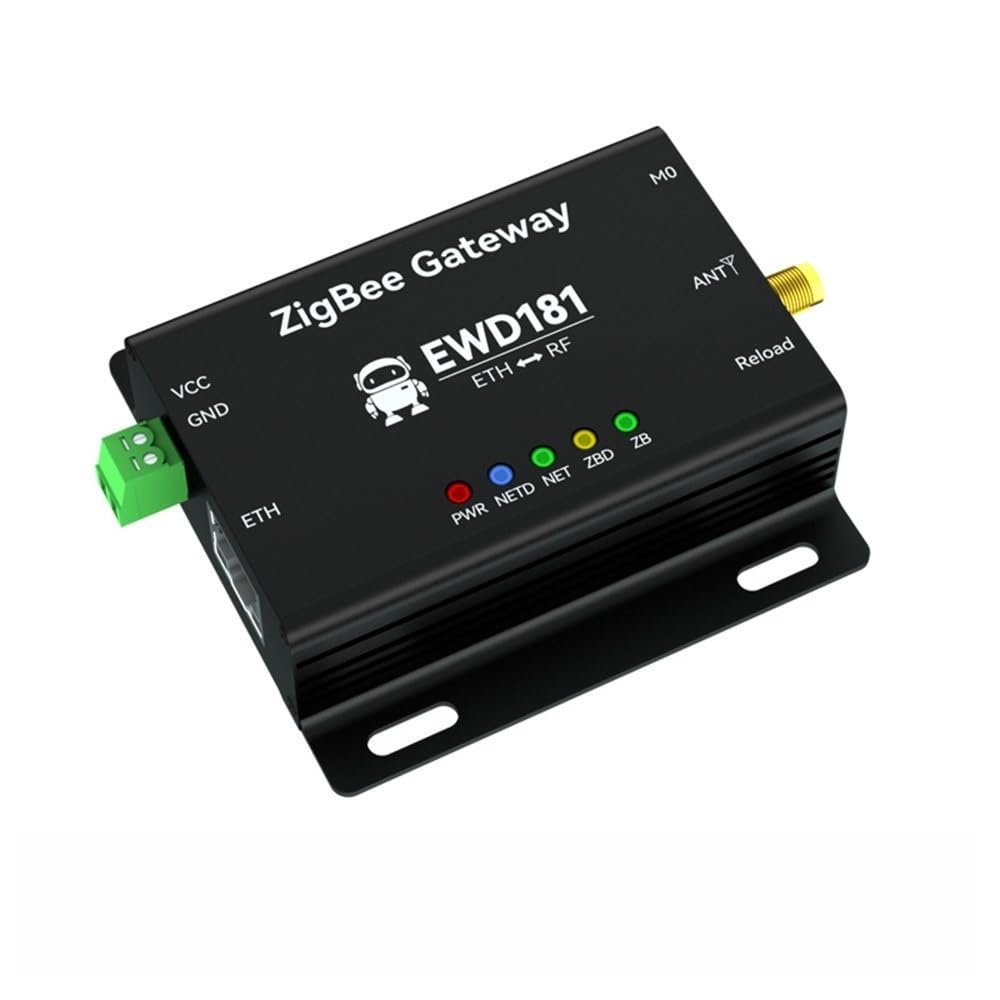

Zigbee 3.0 Wireless Gateway RS232/485/Ethernet EWd181 20dbm Ad Hoc Network Support for Coordinators Routers Terminals (Ethernet)

Description

• Working temperature range: -40+85, adaptable to various harsh working environments, a true industrial-grade product.
• Multiple protection functions such as power reverse connection protection, over connection protection, antenna surge protection, etc. greatly increase the reliability of the radio. Powerful software functions, all parameters can be set through programming: such as power, frequency, address ID, etc. Built-in watchdog, with precise time layout, once an abnormality occurs, the module will automatically restart and continue to work according to the previous parameter settings.
• Automatic networking: The coordinator automatically establishes a network when powered on, and terminals and routers automatically search and join the network.
• Network self-healing: If an intermediate node in the network is lost, other networks will automatically join or remain in the original network (isolated nodes will automatically join the original network, and routing nodes will remain in the original network); if the coordinator is lost and there are non-isolated nodes in the original network, they can rejoin the network after the coordinator is started.
• Ultra-low power consumption: When the device is in terminal state, it can be set to low powerconsumption mode. The device sleep time can be changed according to the user's usage time. In low power consumption mode, the standby power consumption is less than 2uA. During the parent node data storage time, the device can receive the messages it should receive within the user-set time

EWD181-Z20 is a wireless modem based on ZigBee 3.0 technology, offering multiple functions including transparent transmission and protocol transmission. As a communication medium, wireless data modem, like optical fiber, microwave, and
open-wire, has a limited scope of application: it provides real-time, reliable datatransmission of monitoring signals within private networks under certain special
conditions. It features low cost, easy installation and maintenance, strong diffraction resistance, flexible networking, and long coverage. It is suitable for applications with numerous and dispersed points and complex geographical environments. It can be connected to data terminals such as PLCs, RTUs, rain gauges, and liquid level gauges.
