Zigbee 3.0 to Serial Wireless Module EWM181-Z12SP/X 20dbm Long Distance Ad Hoc Network Support Coordinators Routers Terminals (20dbm IPEX) (12dbm IPX Coordinator)

Description

• Coordinator devices: EWM181-Z12SP(C), EWM181-Z12SX(C); Router devices: EWM181-Z12SP(R), EWM181-Z12SX(R); Terminal equipment: EWM181-Z12SP(E), EWM181-Z12SX(E).Automatic retransmission: In unicast (on-demand) mode, the device automatically retransmits when it fails to send a message to the next node. Each message can be retransmitted three times, once every 6 seconds.
• Automatic networking: The coordinator automatically builds a network when powered on, and terminals and routers automatically search and join the network. Automatic routing: The module supports network routing function; the router and coordinator carry the network data routing function, and users can perform multi-hop networking.
• Network self-healing: If an intermediate node in the network is lost, other networks will automatically join or remain in the original network (isolated nodes will automatically join the original network, and routing nodes will remain in the original network); if the coordinator is lost and there are non-isolated nodes in the original network, the coordinator can join the network again after it is started.
• Ultra-low power consumption: When the device is in terminal state, it can be set to low power consumption mode. The device sleep time can be changed according to the user's usage time. The standby power consumption in low power consumption mode is less than 2uA. During the parent node data storage time, the device can receive the messages it should receive within the user-set time.
• Module reset: Users can reset the module through serial port commands; Restore factory settings: Users can restore the module to factory settings through serial port commands;Network node management: The coordinator can record the nodes connected to the network, enumerate the information of the connected nodes, delete unnecessary nodes, and facilitate the automated management of networked devices.

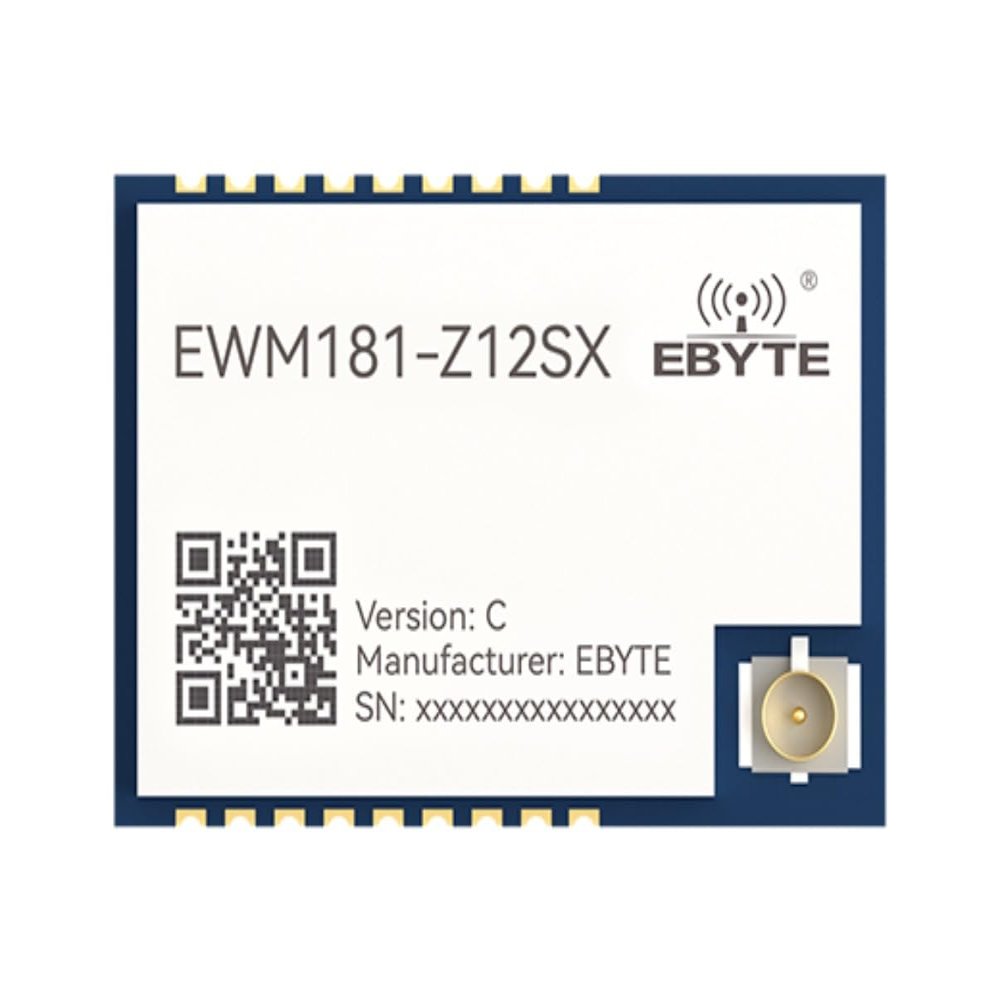

The EWM181-Z12SX/EWM181-Z12SP series is a small-volume 2.4GHz frequency band ZigBee3.0 to serial port
wireless module . It is a SMD type with a maximum transmission power of 12dBm and a
pin spacing of 1.27mm. It comes with self-organizing network firmware and is simple and easy to use. It is mainly
suitable for data transmission application scenarios
