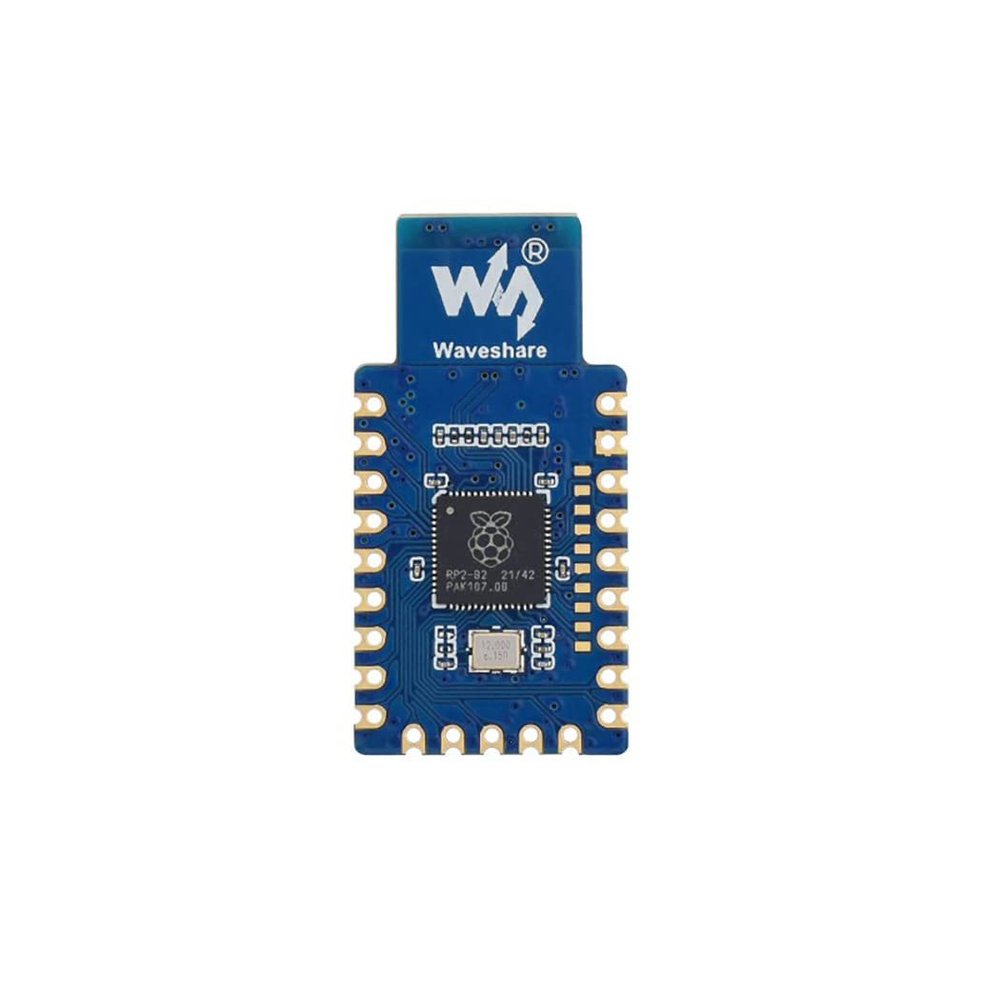

RP2040-One, a Pico-Like 4MB Flash MCU Board Based On Raspberry Pi RP2040, Suitable for SMD Applications

Description

• RP2040 microcontroller chip designed by Raspberry Pi in the United Kingdom
• Dual-core Arm Cortex M0+ processor, flexible clock running up to 133 MHz; 264KB of SRAM, and 4MB of on-board Flash memory
• Castellated module allows soldering direct to carrier boards; USB 1.1 with device and host support
• Low-power sleep and dormant modes; Drag-and-drop programming using mass storage over USB
• 29 multi-function GPIO pins (20 via edge pinout, others via solder points); 2 SPI, 2 I2C, 2 UART, 4 12-bit ADC, 16 controllable PWM channels

Specifications

RP2040 microcontroller chip designed by Raspberry Pi in the United Kingdom
Dual-core Arm Cortex M0+ processor, flexible clock running up to 133 MHz
264KB of SRAM, and 4MB of on-board Flash memory
Castellated module allows soldering direct to carrier boards
USB 1.1 with device and host support
Low-power sleep and dormant modes
Drag-and-drop programming using mass storage over USB
29 multi-function GPIO pins (20 via edge pinout, others via solder points)
2 SPI, 2 I2C, 2 UART, 4 12-bit ADC, 16 controllable PWM channels
Accurate clock and timer on-chip
Temperature sensor
Accelerated floating-point libraries on-chip
8 Programmable I/O (PIO) state machines for custom peripheral support

Package include

1. RP2040-One x1

Resources available: https://www.waveshare.com/wiki/RP2040-One
