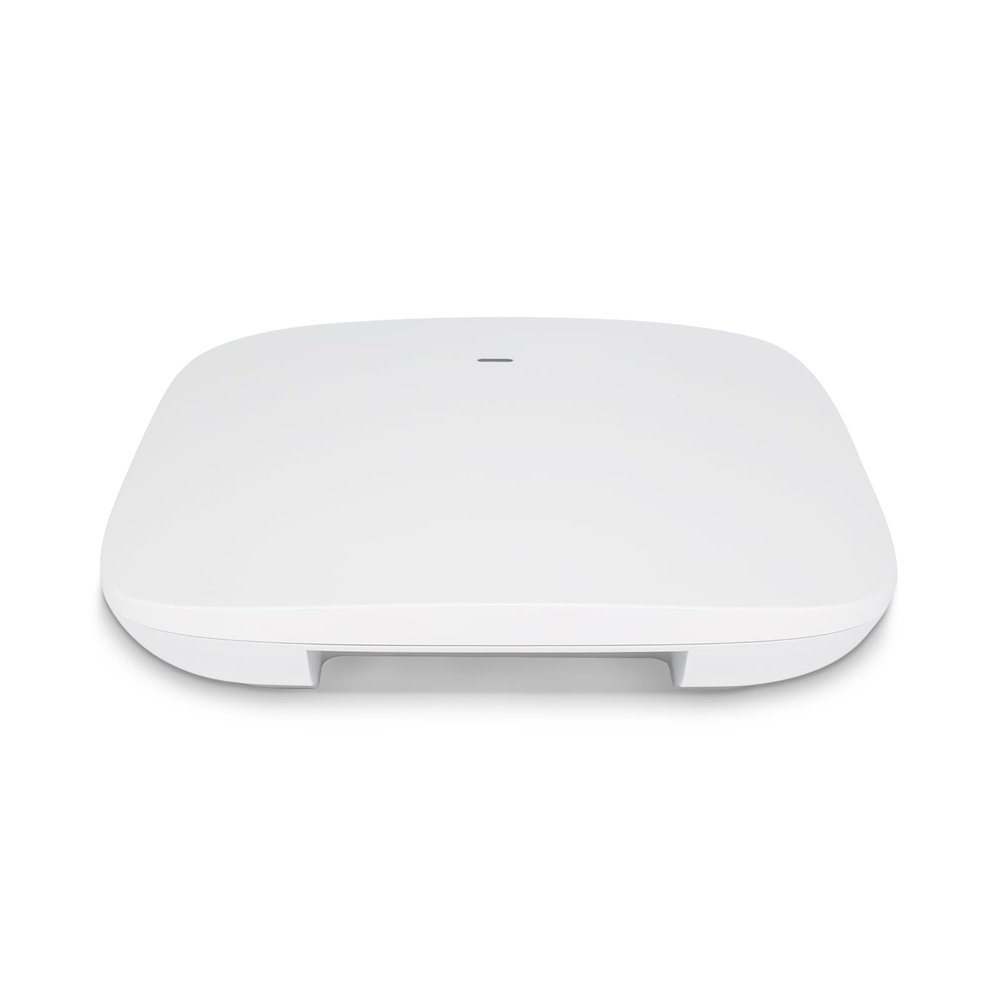

QSFPTEK Ceiling-Mounted Intelligent WiFi6 AP, 2 Gigabit Ethernet Ports, Built-in MIMO Antennas, 1800Mbps Wireless, Supports POE and Adaptor Power Supply, excluding Power Adaptor

Description

• Wireless Solutions: Supports wired and wireless QoS, automatic terminal identification, automatic channel selection,automatic power adjustment, dynamic receiving sensitivity and other carrier-level network optimization features while accessing a large number of users, which serves enterprises with easy-to-use and practical WLAN.
• Auto Tuning: QAP-603 can also cooperate with QAC-B16 series wireless controllers to achieve the "one-key wireless automatic optimization" and background automatic optimization, ensuring that users complete network tuning by themselves when the wireless environment changes,without waiting for manufacturers or agents to come to service.
• Comprehensive Security Features: Supports WEP/WPA/WAP2 access modes,wireless IPS/IDS, the layer-2 user isolation, and centralized ACL control. Supports docking with QAC-B16 wireless AC, provides rich and practical diversied authentication functions for computers, mobile phones, tablets and other terminals, to facilitate user access authentication. Provides illegal AP detection and subsequent processing, wireless attack defense, static black and white lists.
• LED controllable design:the LED lights can be turned off during the night break toavoid irritating the eyes; all the LED lights can be turned on to improve the operation efficiency during the network inspection. All the LEDs can be controlled in batches through the AC, and can also be switched individually with each AP button, which is very exible and convenient.
• Manageable Features: QAP-603 and mounting bracket adopt ultra-thin shape, and the network port is also designed to be retracted and hidden. Supports the integrated design of fat and thin APs, which can be individually congured, and can also be connected to QAC-B16 series wireless ACs to realize CLI, Web, SNMP management. Can also be managed to achieve unified management of AC, switches, routers, security and other products, greatly improving the eciency of operation and maintenance

Item: QAP-603
Weight: 420(g)
Mounting method: Ceiling
Dimensions (excluding accessories):168x168x32(mm)
Ethernet port:
1 GE WAN port (POE supported)
1 GE LAN port
Local power supply:POE input or 12V DC
PoE power supply:802.3at
Antenna type:Built-in omnidirectional
Antenna gain:
2.4G: 3dBi
5G: 3dBi
Operating frequencybands: 802.11 a/n/ac: 5.725GHz-5.850GHz ;
5.15-5.35GHz; 802.11 b/g/n/ac: 2.4GHz-2.483GHz
Wi-Fi data rate:
2.4G: 2*2 11ax 573Mbps
5G: 2*2 11ax 1200Mbps
Maximum total transmitting power (The actual transmission power is
subject to relevant regulations.)
2.4 GHz: 23 dBm (combined power)
5 GHz: 23 dBm (combined power)
Modulation technology:
OFDM: BPSK@6/9Mbps, QPSK@12/18Mbps,
16-QAM@24Mbps, 64-QAM@48/54Mbps
DSSS: DBPSK@1Mbps, DQPSK@2Mbps,CCK@5.5/11Mbps
MIMO-OFDM(11n):MCS 0-15
MIMO-OFDM(11ac):MCS 0-9
MIMO-OFDM(11ax):MCS 0-11MIMO-OFDM(11ax): MCS 0-11
Modulation mode:
11b: DSS:CCK@5.5/11Mbps, DQPSK@2Mbps,DBPSK@1Mbps
11a/g: OFDM:64QAM@48/54Mbps, 16QAM@24Mbps,
QPSK@12/18Mbps, BPSK@6/9Mbps
11n: MIMO-OFDM: BPSK, QPSK, 16QAM, 64QAM
11ac: MIMO-OFDM: BPSK, QPSK, 16QAM, 64QAM, 256QAM
11ax: MIMO-OFDM: BPSK, QPSK, 16QAM, 64QAM, 256QAM, 1024QAM
Power adjustment: Automatic
Reset:Supported
Status LED:on / Blinking/ error
Operating temperature/Storage temperature: -10C~40C/-40C~70C
Operating humidity /Storage humidity: 10%~95% (non-condensing)
Protection class: IP41
Power consumption:250000H
