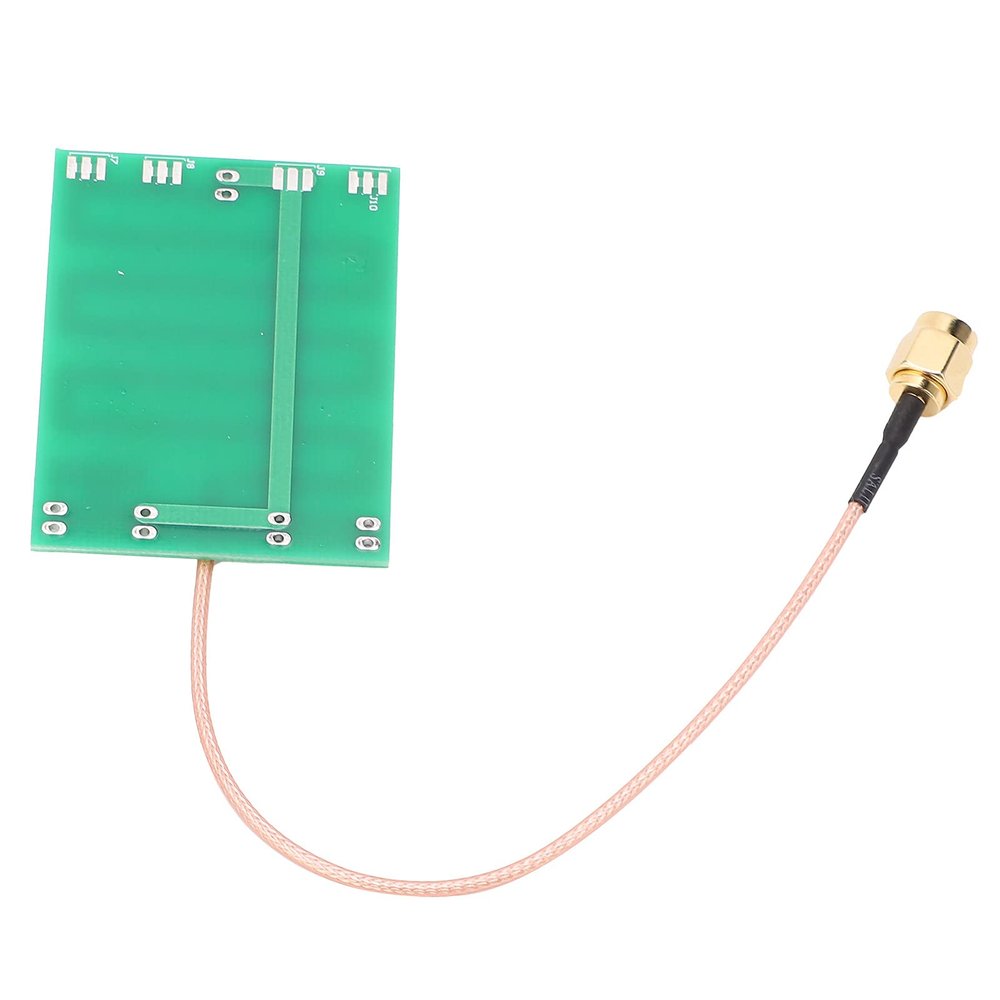

PCB Antenna 902?928MHz UHF RFID Reader Antenna Module Circular Polarization Antenna with SMA Connector

Description

• RFID READING DISTANCE-- Using this antenna, the UHF RFID reading distance is generally from 10cm to 50cm depending on the reader performance, PA power, passive tag performance, test environment and other factors.
• GOOD IN UHF RFID TESTING-- This antenna is suitable for low-cost UHF RFID testing. For Impinj R2000 and ST25RU3992, ST25RU3993 and other mainstream UHF RFID reader chips can use this antenna, and the test results are good.
• WIDE FR RANGE-- Polarization antenna is applicable to the readers of European standard 865-868MHz, standard and Chinese standard 902-928MHz.
• WIDE APPLICATION-- The antenna module can be widely used for intelligent production line, warehouse, logistics, personnel management. Connectors are optional, commonly used are for SMA , meet your different requirements.
• -- PCB antenna is made of PCB and aluminum material, working temperature uo to -40~70, good replacement for your old one.

Feature:
1. Applicable to the readers of European standard 865-868MHz, American standard and Chinese standard 902-928MHz
2. Connectors are optional, commonly used are for MMCX series, SMA series, etc., very convenient
3. Using this antenna, the UHF RFID reading distance is generally from 10cm to 50cm depending on the reader performance, PA power, passive tag performance, test environment and other factors
4. This product is suitable for low-cost UHF RFID testing. For Impinj R2000 and ST25RU3992, ST25RU3993 and other mainstream UHF RFID reader chips can use this antenna, and the test results are good
5. Applied to intelligent production line, warehouse, logistics, personnel management

Specification:
Item Type: PCB Antenna
Material: PCB+aluminum
RF Range: 902-928MHz
Polarization Method: Circular polarization
Cable Length: Approx. 15cm / 5.9in
Gain: 5 dBi
Standing Ratio: 1.4
Half Power Angle: 70
Input Impedance: 50
Maximum Input Power: 100W
Connector: SMA, form IPEX/MMXC, etc.
Working Temperature: -40~70
Application:
Intelligent Management of Production Lines: Intelligent sorting of assembly line products, etc.
Warehouse Management: Automatic recording of goods in and out of the warehouse, etc.
Logistics Management: Container management, pallet management, asset tracking, etc.
Personnel Management: School entrance and exit management, factory entrance and exit management

Package List:
1 x PCB Antenna
