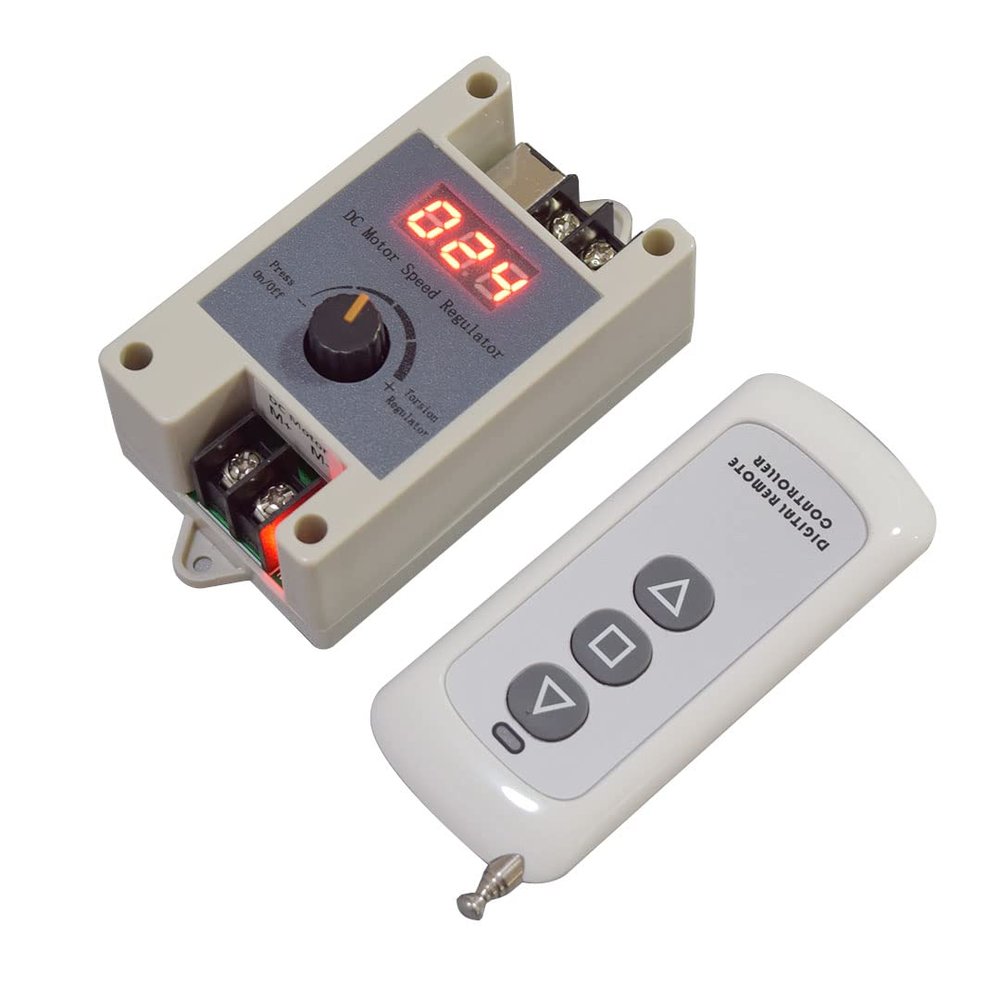

DC6V-24V Motor Te Controller High Accuracy PWM Stepless Electronic Speed Regulator - (Speed(RPM): Power Supply AU)

Description

• Speed(RPM): Power Supply AU
• Continuous Current(A): 5A
• Commutation: Brush
• Usage: Home Appliance

Item Description:
Specification
Package list:
1*Speed Control
1*Power Adapter( Input AC100-240V, Out Put DC24V 2A) (option)
Speed Control Voltage range: DC6V-24V
Working current: rated 5A peak 10A
Duty Cycle (PWM): 0%-100% LED digital tube visual display
Frequency: 13Khz
te control distance: up to 100 meters in an open environment. Need to pull out the te control antenna and adjust the receiving motherboard antenna.
Power supply wiring mode: V+ connects to the positive pole of the DC input, V- connects to the negative pole of the DC input or use the DC 5521 socket to input.
Motor wiring mode: M+ connects to the positive pole of the motor, M- connects to the negative pole of the motor.
te control pairing method:
1. Press and hold the motherboard pairing button for 2 seconds and then let go. At this time, the pairing indicator will be on, and then press any button on the te control. When the pairing indicator is off, the pairing will be successful. If it fails, please try again and again.
2. Long press for about 10 seconds, after letting go, the pairing LED flashes quickly for 2 seconds to clear all previous pairings.
Notice
This governor does not have reverse connection protection. Reverse connection will burn the main board. Please confirm the positive and negative poles and voltage range before turning on the power.
Notice:
Item Specification:

Continuous Current(A): 5A
Commutation: Brush
Usage: Home Appliance
