Description
- True 4x4 HDMI matrix distributes any combination of four HDMI sources to four separate displays; Control multiple displays for security monitors, performance displays at houses of worship, sports TV displays in a bar and more; Two 4K HDMI cables are included with the HDMI 2.0 Matrix
- Newest 4 port HDMI matrix supports the High Dynamic Range (HDR) feature for the ultimate viewing experience. Vibrant video & with HDMI 2.0 (4:4:4 8bit) support for video resolutions up to 3840 x 2160 @ 60 Hz including 1080p; 22 flexible video configuration modes with the EDID control
- IR remote switching between any of the HDMI sources or output displays of 4 In 4 Out HDMI routing matrix switch splitter; HDMI 2.0 splitter includes a handheld remote and IR extensions cable; Optional push-button configuration on the matrix or remote programming over IP with an RS-232 cable to a computer
- The HDMI cable splitter supports the most popular audio formats including Dolby Digital, DTS and 5.1 or 7.1 surround sound audio; Audio mirroring output of each HDMI source from a 3.5mm aux or digital coax port
- Rugged metal housing of this matrix in a metal enclosure provides durability, heat dissipation, and minimizes EMI electromagnetic noise interference; Surface mountable with the included brackets and hardware
4 x 4 Switching

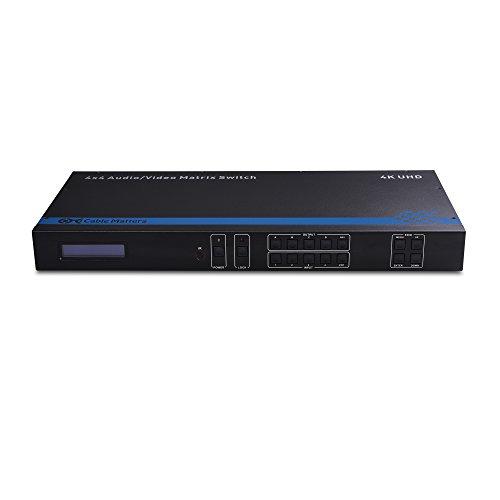

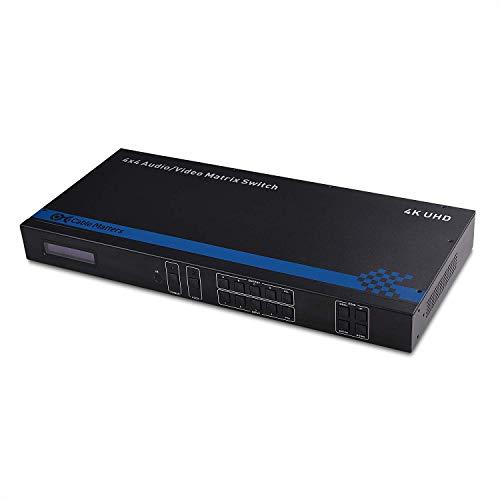

The Cable Matters 4x4 Audio/Video Matrix Switch is the perfect solution for switching any combination of HDMI sources to displays with HDMI input ports. Connect up to four devices to four separate displays and control each device independently with the handheld IR remote.
Display of Choice
Broadcast to a 4K UHD TV, monitor or projector in your home theater, conference room, classroom, or house of worship. Install the Matrix in a concealed location with the included mounting hardware.
Simple Installation + Bonus Cables

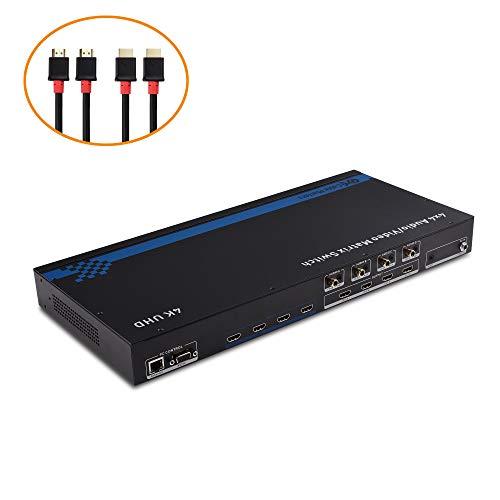

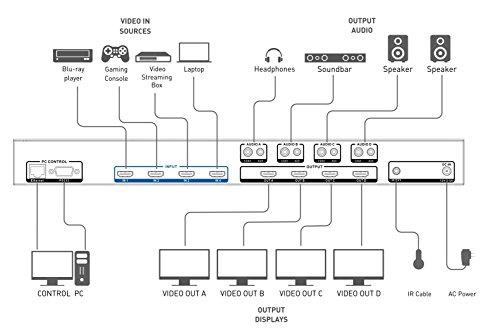

Connecting 4 separate displays is as simple as connecting HDMI cables. Configure and control the Matrix over IP with an RS-232 cable to a computer. Two 4K-rated HDMI cables are included.
Matrix Specifications

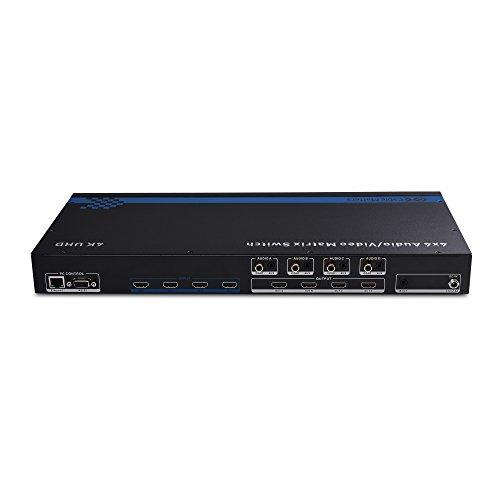

- HDMI Input: 4 x HDMI Female
- HDMI Output: 4 x HDMI Female
- Video Resolutions: Up to 3840 x 2160 @ 60Hz
- Audio Support: 2 Ch/Dolby/DTS/5.1, 7.1 Surround Sound
- HDCP compliant with compatible equipment
- Housing Dimensions: 17.3 x 7.9 x 1.8 in
- Weight: 4 lb
Important Notes
- 2 HDMI cables are included, others are sold separately
- Use high quality HDMI cables in the shortest length needed to avoid HDMI handshaking issues
- 4K resolution support requires a 4K rated source, HDMI cable, and output display
Package Contents
1 x Matrix Switch
1 x Power adapter
1 x IR Remote
1 x IR Extension cable
1 x RS-232 cable (download software from Cable Matters)
2 x Mounting brackets with screws
2 x HDMI Cables - 6 Ft.
1 x User Manual
