Banana Pi BPI-R4 WiFi7 Wireless Tri-Band Router OpenWRT - DDR4 4GB/8GB RAM - MediaTek MT7988A SoC, 4G/5G Wireless Router Repeater, 2X 10GbE SFP 4X GbE for NAS Smart Home Gateway (Copper Kit, DDR4 4GB)
AED 4,825.21
AED 8,042.02
-
Order within to get between -
Tracked Shipping on All Orders
-
14-Day Returns
- Secure Payments
-
24/7 Customer Support
Description

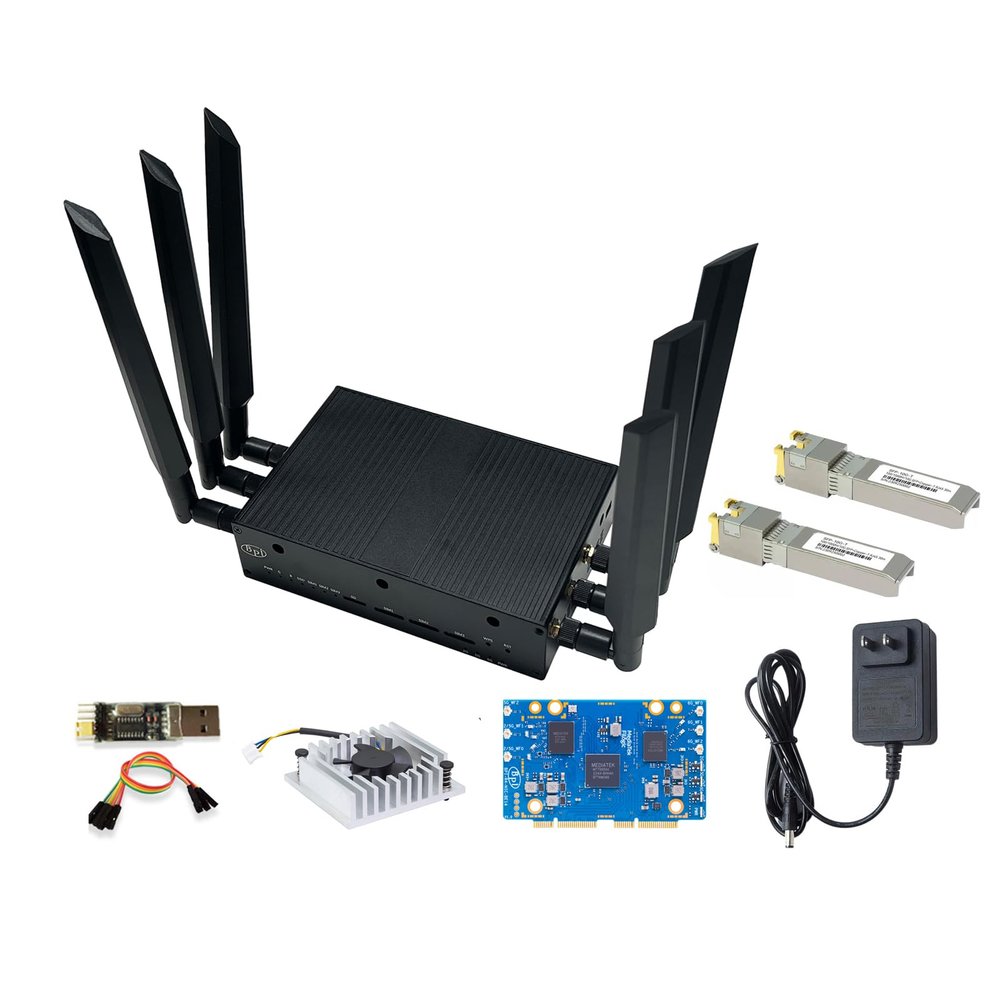

- [Out-of-the-box] The Banana Pi BPI-R4 Router shown in is the installed version (BPI-R4 router board, WIFI7 NIC module, 6 antennas, metal casing are all installed), no need to install by yourself, you can use it right out of the box. eMMC has installed the latest OpenWRT firmware, you can use Tri-band WIFI function right after you turn on the router to enjoy the network environment.
- [MediaTek MT7988A SoC] Banana Pi BPI-R4 wireless tri-band router board with MediaTek MT7988A (Filogic 880) quad-core ARM Corex-A73 CPU design, 4GB/8GB DDR4 RAM 8GB eMMC and 128MB SPI-NAND flash onboard, works as 36Gbps Wi-Fi 7 access point/router/gateway. It is also a very high performance open source router development board.
- [Support WiFi7 iPA NIC Module] Banana Pi BPI-R4 wireless tri-band router board onboard 2x miniPCIe slots with PCIe3.0 2lane interface for Wi-Fi 7 NIC module (Network Interface Card), it also support WIFI 6/ WIFI 6E. MediaTek MT7988A enables seamless Wi-Fi 7 tri-band, 2.4GHz, 5GHz and 6GHz connectivity, with its Wi-Fi 7 companion chip that features 320-MHz bandwidth, 4096-QAM, MLO, MRU and AFC.
- [Support 2x 10Gbe SFP/4x Gbe] Banana Pi BPI-R4 wireless wifi router board support 2x 10Gbe SFP and 4x Gbe ethernet with 4 Port 10/100/1000Mbps Gigabit Ethernet port, also has USB3.2 port and M.2 interface, support 4G/5G module (EM05/RM500Q-GL/RM520N-GL) signal reception and NVME SSD.Providing the fastest and most reliable network connection.
- [Rich Peripheral interfaces] Banana Pi BPI-R4 wireless tri-band Router Board onboard 2x 10Gbe SFP Optical ports, 4x Gbe Gigabit LAN ports, 1x USB3.2 port, 3x Nano SIM Slot, 1x M.2 KEY-B connector for 4G/5G Module, 1x M.2 KEY-M connector for 2280 SSD, mPCle Slot for Wi-Fi 6/6E/7 NIC, 1x MicroSD Slot(TF), 1x Debug UART port, 1x 26 Pin GPIO, supports UART, I2C, SPI, PWM, I2S.
- [Application Scenarios] Banana Pi BPI-R4 Router Board can be applied to Internet service Router, Wifi 7 Wireless Router, 4G/5G Wireless Router, Wireless Repeater, Home security Gateway, Home Automation, Nas device, Network and communication applications. 36Gbps Wi-Fi 7 Access Point/Router/Gateway
- [OS System Support] The Banana Pi BPI-R4 WIFI7 wireless tri-band Internet Router supports OpenWRT, Debian 12, Debian 11, Ubuntu 24.04, Ubuntu 22.04 and Third Party (you need to debug it yourself) systems for your project. It provides more possibilities for your project development, and at the same time, it can satisfy the different operating environments of individual users.
- [Out-of-the-box] The BPI R4 Router shown in is the installed version (BPI R4 router board, WIFI7 NIC module, 6 antennas, metal casing are all installed), no need to install by yourself, you can use it right out of the box. eMMC has installed the latest OpenWRT firmware, you can use Tri-band WIFI function right after you turn on the router to enjoy the network environment.
- [Wiki] SDK Document: "docs.banana-pi.org/en/BPI-R4/BananaPi_BPI-R4"; All after-sales questions please click "WayPonDEV" store and ask the question. Or please leave the message to "wpd#youyeetoo&com (#--->@,&--->.)".
