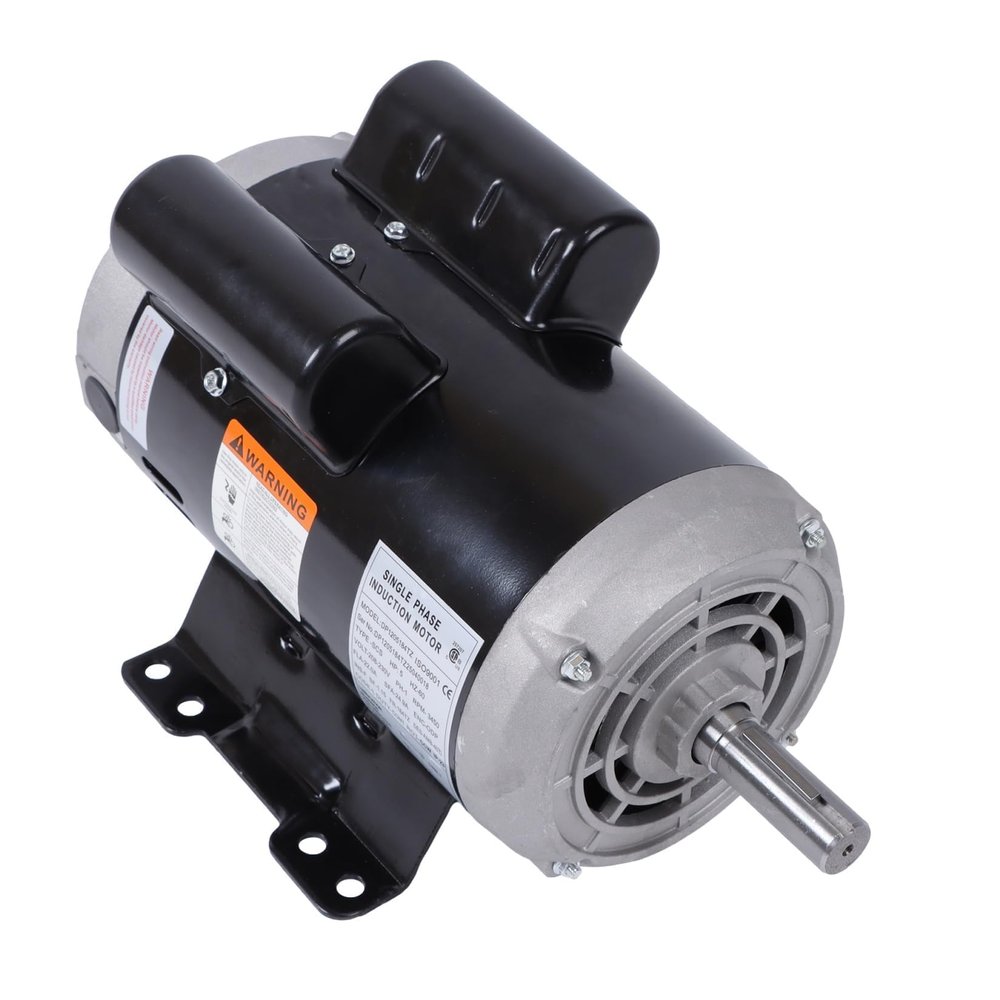

5HP Electric Motor 184TZ Frame 3450RPM Single Phase 23378805 54421193 Air Compressor Motor General Severe Duty 60Hz 230V 7/8 Inch Keyed Shaft

Description

• Electric Motor: 5HP, 3450RPM, Frame-184TZ, 60HZ, 230V
• Strong Durability: As a General Severe Duty Motor, this electric motor is elaborately designed to withstand long-term use and harsh environments, ensuring long-lasting durability
• Easy to Install: Equipped with a 7/8-inch keyway shaft, it is convenient to install, allowing users to easily connect it to existing equipment and facilitating quick commissioning
• Widely Used: Can be used for various general equipment, please carefully check the model to meet your needs
• Package Includes: 1 x 5HP motor, 1 x instructions

5HP Electric Motor 184TZ Frame 3450RPM Single Phase 23378805 54421193 Air Compressor Motor General Severe Duty Motor 60Hz 230V 7/8 Inch Keyed Shaft

Detailed Dimensions:
FLA: 22A
SFA: 24.9A
Voltage: 230V
Frequency: 60HZ
Horse Power: 5HP
Frame Size: 184TZ
Phase: Single Phase
Shaft Length: 2.25''
Rated Speed: 3450RPM
Shaft Diameter: 7/8" keyed shaft

Adaptive:
The electric motor is equipped with standard 184T base and keyway shaft, fit for most machinery
